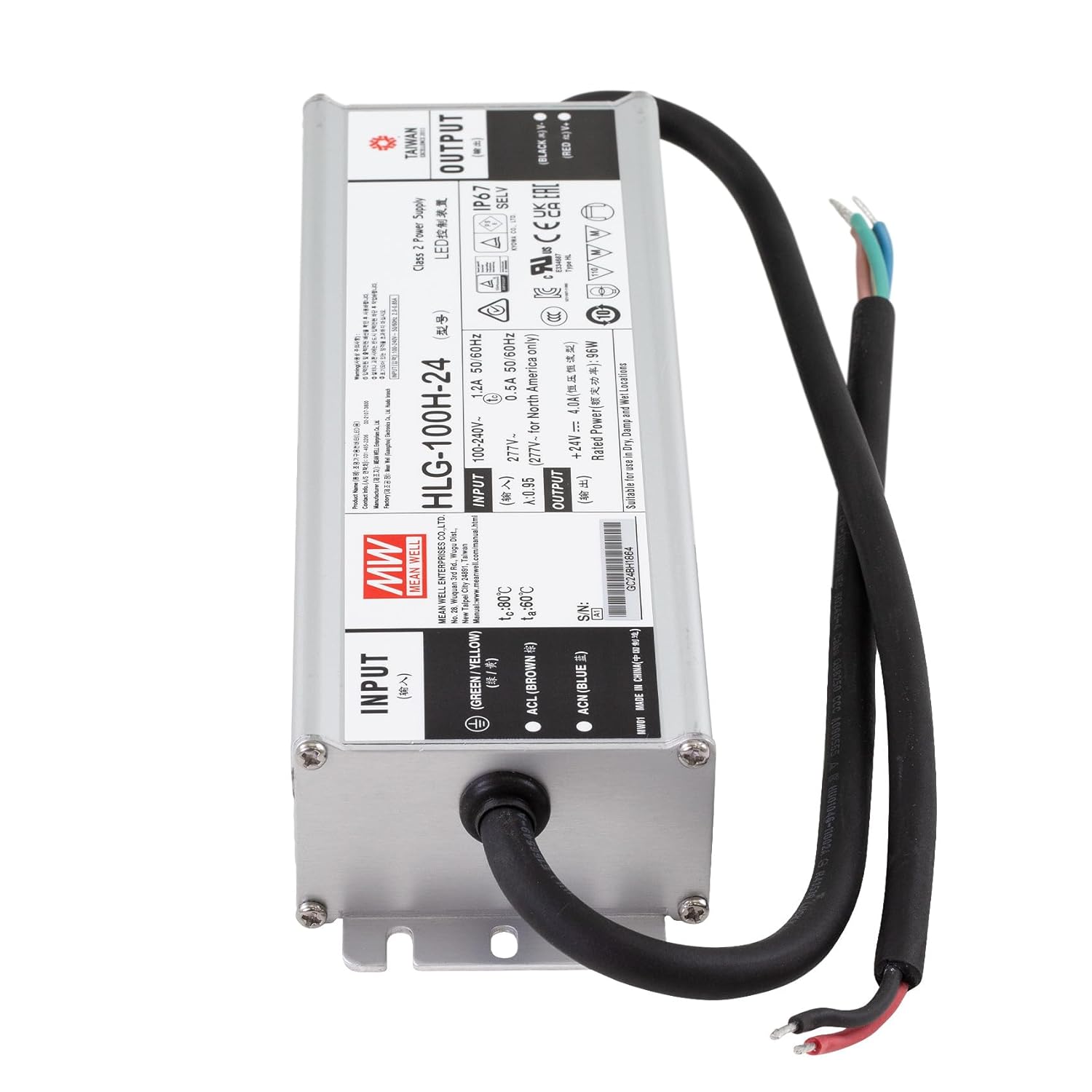

Mean Well HLG-100H-24 96W 24V DC Switching Power Supply/LED Driver - Dual Mode CV + CC Output

HLG-100H 100W Constant Voltage + Constant Current LED DriverMEAN WELL HLG-100H Series – 96W Constant Voltage + Constant Current LED DriverThe HLG-100H Series is a premium 100W AC/DC LED driver designed to deliver reliable, high-efficiency power for demanding lighting applications. Featuring dual-mode Constant Voltage and Constant Current output, this versatile driver supports rated output voltages from 20V to 54V, making it adaptable to a wide range of LED systems.Engineered for durability and performance, the HLG-100H operates across a wide 90–305VAC input range and achieves efficiency up to 93%. Its fanless design and robust metal housing allow stable operation in extreme environments, with a working case temperature range of -40°C to +80°C. With IP65/IP67 protection, it is ideal for both indoor and outdoor installations.The series includes built-in active PFC, comprehensive protection features (over-current, over-voltage, over-temperature, and short circuit), and optional 3-in-1 dimming (1–10V, PWM, or resistance) for maximum design flexibility. Adjustable models include built-in potentiometers for fine-tuning output voltage and current.With a typical lifetime exceeding 62,000 hours, the HLG-100H is a dependable solution for LED street lighting, high-bay lighting, parking lot lighting, greenhouse systems, fishing lamps, and other industrial or commercial lighting applications.Built for performance. Designed for longevity. Trusted for professional lighting systems.Specifications:Input Voltage: 90~305VacOutput Voltage (CV mode): 24VdcOutput Max Current (CV mode): 4 AmpsOutput Current (CC mode): 4 AmpsConstant Current Operating Range: 12~24VdcMax Power: 96 WattsKey Features - Mean Well HLG-100H-24 LED Power Supply96W AC/DC LED driverConstant Voltage + Constant Current dual-mode outputWide input range: 90–305VACAvailable output voltages: 20V, 24V, 30V, 36V, 42V, 48V, 54VHigh efficiency up to 93%Built-in active PFC (Power Factor Correction)IP65 / IP67 rated for indoor and outdoor useDurable metal housing with Class I designFanless design for silent operation3-in-1 dimming (1–10VDC, 10V PWM, or resistance) on select modelsAdjustable output (via built-in potentiometer on A/AB models)Protection: Short circuit, over-current, over-voltage, over-temperatureOperating temperature range: -40°C to +80°CTypical lifetime > 62,000 hoursApplicationsLED street lightingLED high-bay lightingParking lot and garage lightingWarehouse and industrial lightingLED greenhouse and horticulture lightingLED fishing lampsOutdoor signage and flood lightingCommercial and architectural LED installationsClass I, Division 2 hazardous locations (Type “HL” models)

• Input Voltage: 90~305Vac
• Output Voltage (CV mode): 24Vdc
• Output Max Current (CV mode): 4 Amps
• Output Current (CC mode): 4 Amps
• Constant Current Operating Range: 12~24Vdc
• Max Power: 96 Watts
• Fanless design for silent operation
